Product Details

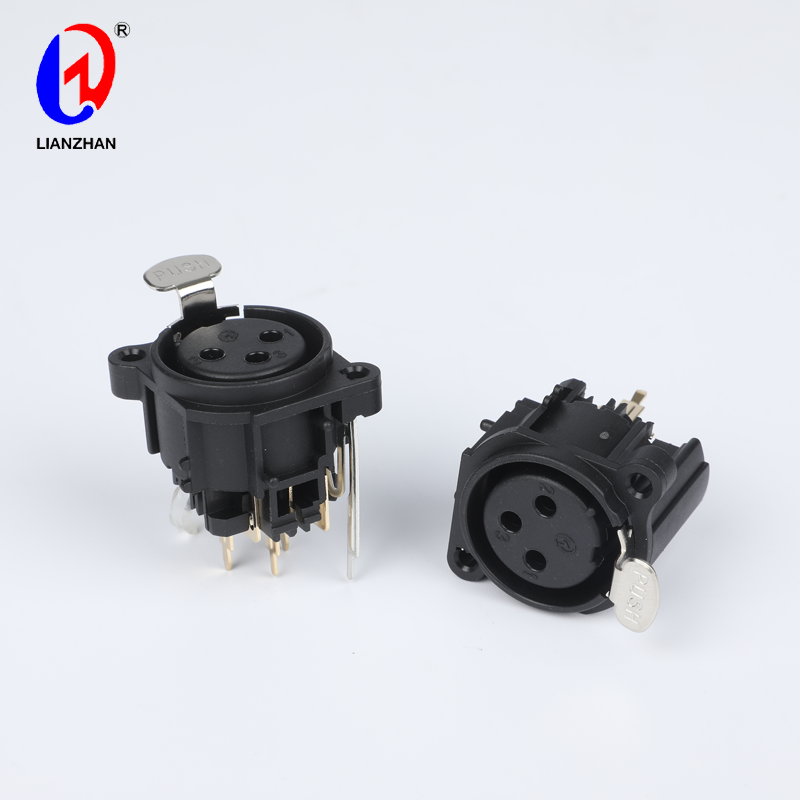

● Type: Push Lock XLR Connector 3-Pin Female Panel Mount Chassis Socket ● Material: Plastic, Metal ● Separate ground contact to mating connector shell and front panel ● Available in 3, 4, 5, 6 and 7 pin configuration with silver or gold plated contacts ● Applied to Audio-Video Equipment, Microphone, Sound Card, Video, Mixer, Power Amplifier, Speaker and Stage Sound Lighting etc ● Color: Black, Silver ToneSpecification
| Product Name | Push Lock XLR Connector 3-Pin Female Panel Mount Chassis Socket |
| Model | CT3-04HFP-B |
| Pin | 3 PIN |
| Contact Resistance | ≤0.2 MΩ |
| Insulation Resistance | ≥100 MΩ |
| Withstand Voltage | 1500V, AC/min |
| Terminal Strength | ≥30 N |
| Rated Load | 250V DC 1.0A |
| Temperature | -30 ~ +80 ℃ |
| Life | 5000 Time |
