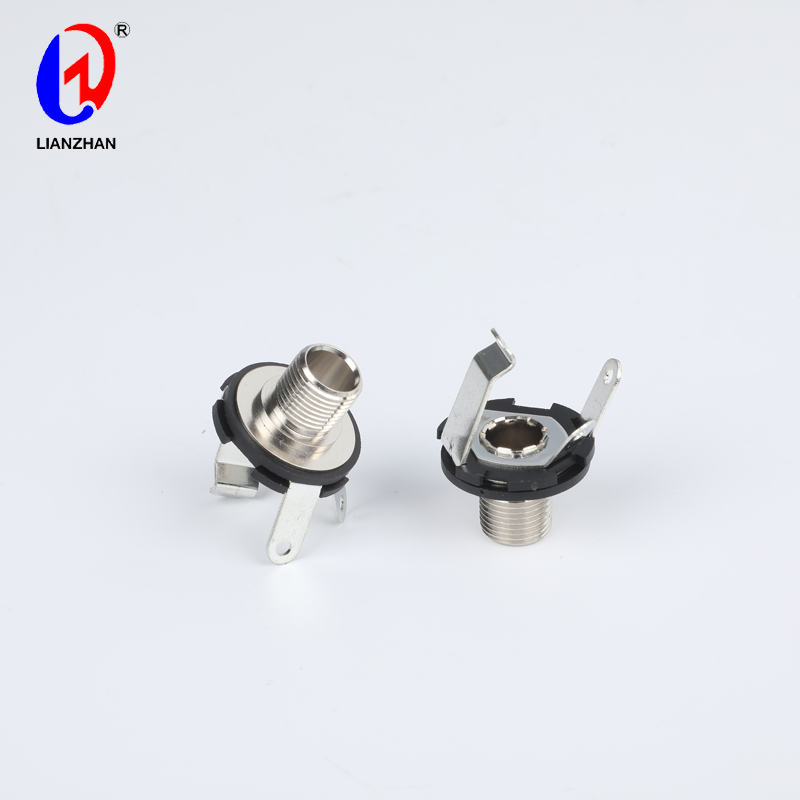

Factory Direct 6.35mm Mono TS Socket Female Panel Mount Jack Connector For Microphones

6.35mm Microphone Mono TS Socket Female Panel Mount Phone Jack Connector

6.35mm (1/4inch) Female Mono TS Socket Panel Mount Jacks. Well made jacks, easy to solder and appear sturdy enough for heavy usage. Commonly used for the termination of guitar and signal cables. flexible protective cable boot. Suitable for demanding live sound and studio recording applications. Professional Jack Plug. 6.35mm panel mount solder.

Product Details

● Product Name: 1/4 Inch Female Panel Mount Audio Mono Jack Connector ● Thick Fiberglass Insulators ● Washer and Nut Included ● Full Metal Construction ● Tip Sleeve Mono Design ● Full GLS Audio Satisfaction Guarantee

Specification

6.35mm-Microphone-Mono-TS-Socket-Female-Panel-Mount-Phone-Jack-Connector

Product Name	1/4 Inch Female Panel Mount Audio Mono Jack Connector
Model	CK6.35-662
Pin	3 PIN
Contact Resistance	≤0.03 MΩ
Insulation Resistance	≥100 MΩ
Withstand Voltage	500V, AC/min
Terminal Strength	≥30 N
Rated Load	30V DC 1.0A
Temperature	-30 ~ +70 ℃
Life	5000 Time

"Based on domestic market and expand overseas business" is our development strategy for PriceList for Audio Stereo Female Jack Connector , 6.35mm Headphone Socket, To much better expand industry, we sincerely invite ambitious individuals and corporations to hitch as an agent. PriceList for China 6.35mm Stereo Headphone Jack, Headphone Jack Audio Connector , We always stick to the tenet of "sincerity, high quality, high efficiency, innovation". With years of efforts, we've got established friendly and stable business relationships with worldwide customers. We welcome any of your inquiries and concerns for our solutions, and we're sure that we are going to offer just what you want, as we always believe that your satisfaction is our success.
