Product Details

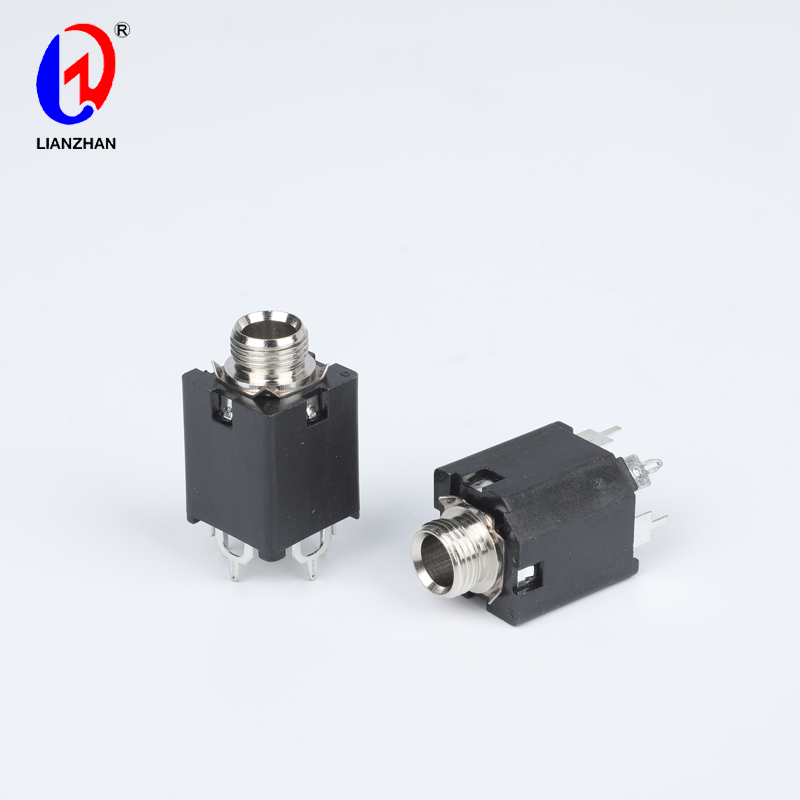

● Type: Lianzhan 1/4" Headphone Jack Panel Mount Stereo Female Socket Connector ● Material: High quality plastic and metal material, good conduction, stable performance ● Connect: One end is wiring port for connecting the input power line or soft cable. And the other end is arranged in the insulating base for computer monitor normal operation ● Application: Applied to Audio-Video Equipment, AV Equipment, Mobile Phone, Microphone, Vehicle Audio etcSpecification
| Product Name | Lianzhan 1/4" Headphone Jack Panel Mount Stereo Female Socket Connector |
| Model | CK6.35-630S-5P |
| Pin | 3 PIN |
| Contact Resistance | ≤0.03 MΩ |
| Insulation Resistance | ≥100 MΩ |
| Withstand Voltage | 500V, AC/min |
| Terminal Strength | ≥30 N |
| Rated Load | 30V DC 1.0A |
| Temperature | -30 ~ +70 ℃ |
| Life | 5000 Time |
