Product Details

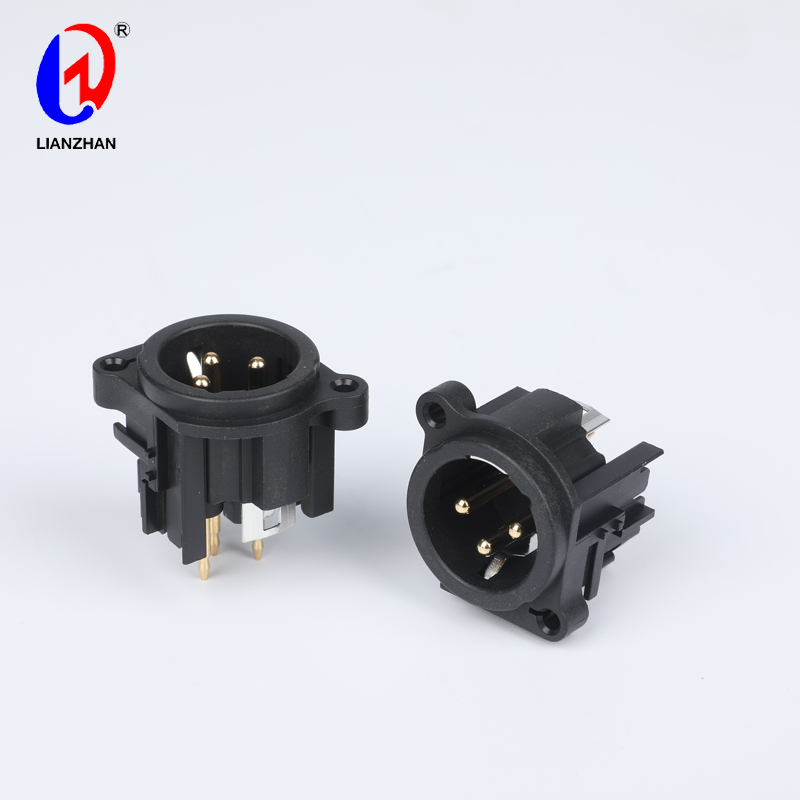

● Type: Audio Video XLR 3-Pin Male Chassis Panel Mount Socket Connector ● Material: Made of high quality plastic and metal material, good conduction, stable performance. ● Can be applied on microphone connections/audio electronics, amplifiers and cabling applications. ● Available in 3, 4, 5, 6 and 7 pin configuration with silver or gold plated contacts ● Color: Black, Straight TerminalSpecification
| Product Name | Audio Video XLR 3-Pin Male Chassis Panel Mount Socket Connector |
| Model | CT3-05HMB |
| Pin | 3 PIN |
| Contact Resistance | ≤0.2 MΩ |
| Insulation Resistance | ≥100 MΩ |
| Withstand Voltage | 1500V, AC/min |
| Terminal Strength | ≥30 N |
| Rated Load | 250V DC 1.0A |
| Temperature | -30 ~ +80 ℃ |
| Life | 5000 Time |
